BuraTAL T5 9650/T5

BuraTAL T5 9650/T5
Request product

BuraTAL T5 9650/T5

Features

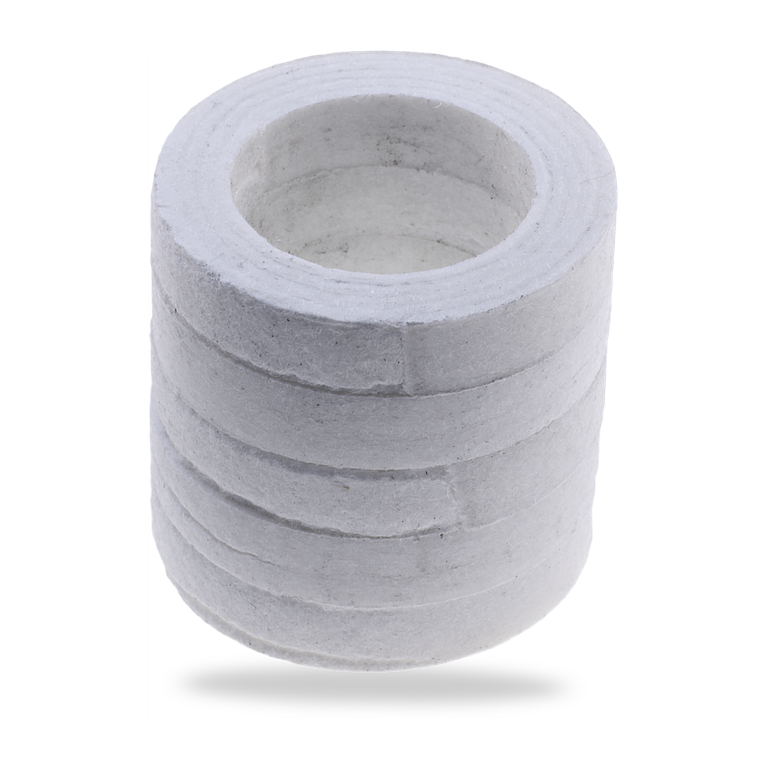

The BuraTAL T5 9650/T5 an innovative new, pure white packing set made from high quality, impregnated non-wovens. It consists of aramid non-woven sealing rings impregnated with PTFE to ensure very high cross-sectional stability. The packing set is especially suitable in applications that demand the highest level of cleanliness, particularly those where high gas sealing performance with low friction is required.

Advantages

  • High gas tightness
  • Minimal friction coefficients
  • Meets the most stringent cleanliness standards

Operating range

Valves
Pressure: p = max. 250 bar
Pressure p to TA-Luft
  • with live-loading system: 30 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation:
    t = -200 °C … +250 °C
Chemical resistance: pH = 1 … 14
Universal chemical resistance. Not suitable for use in highly oxidizing media such as oleum (fuming nitric acid), gaseous fluorine and molten alkali metals.

Variants

9650/T5B (with Live-Loading System)

Forms of supply

  • Customized packing sets made from endless or split precompressed rings
  • Made to order
