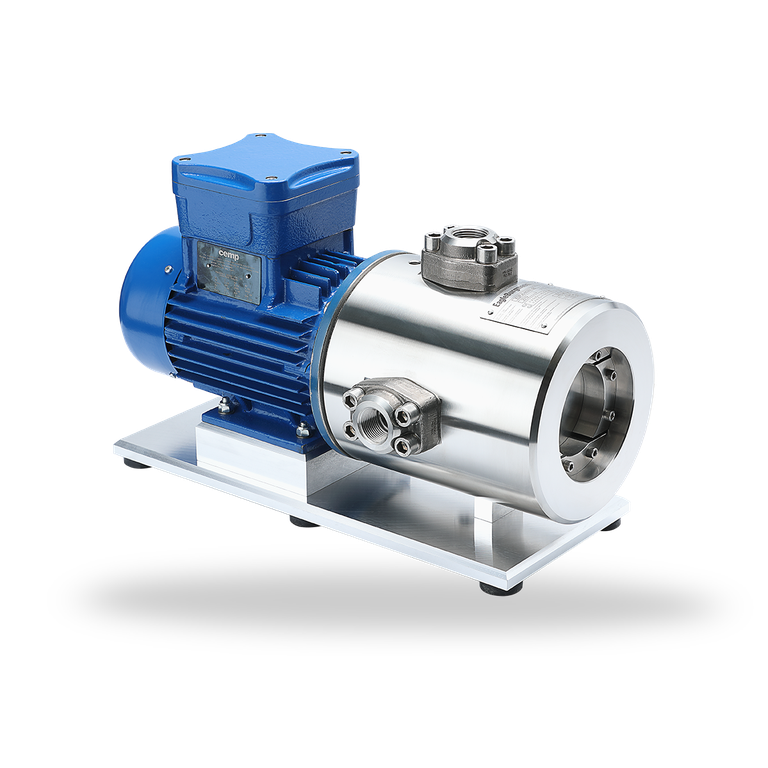

eSPU6 Circulation pump
eSPU6 Circulation pump
Features
Advantages
- Canned pump: Hermetically sealed and mostly maintenance-free
- For operating pressures of up to max. 250 bar
- Carbon graphite thrust bearing: During operation, balanced by double-fluted design of the pumping screw.
- Zirconium oxide sleeve to minimize the magnetic losses of the magnetic coupling
Recommended applications
- Petrochemical industry
- Chemical industry
- Oil and gas industry
- Refining technology
- Food and beverage industry
- Pharmaceutical industry
Notes
Product variants
| Designation | eSPU6 | eSPU6 |
|---|---|---|
| Type of seal | Magnetic coupling | Magnetic coupling |
| Secondary seals | FKM (V) | FFKM (K) |
| Max. allowable viscosity (mm²/s) | 100* | 100* |
| Max. working pressure (Oil) | 250 bar (3,625 PSI) @ 150 °C (302 °F) | 250 bar (3,625 PSI) @ 150 °C (302 °F)200 bar (2,900 PSI) @ 200 °C (392 °F) |
| Max. working pressure (Water) | 250 bar (3,625 PSI) @ 75 °C (167 °F) | 250 bar (3,625 PSI) @ 150 °C (302 °F) |
| Min. fluid temperature | -17 °C (1.5 °F) | -1 °C (30.2 °F) |
| Min. ambient temperature | -29 °C (-20.2 °F) | -10 °C (14 °F) |
| Type of explosion protection | Ex II 2G Ex h IIC T4 Gb Ex II 2D Ex h IIIC T130 °C Db | Ex II 2G Ex h IIC T4 Gb Ex II 2D Ex h IIIC T130 °C Db |
| Motor power 0.75 kW | <ISO VG 32* | <ISO VG 32* |
| Motor power 1.10 kW | ≥ISO VG 32* or 60 Hz | ≥ISO VG 32* or 60 Hz |
| Weight pump head without motor | 48.5 kg (107 lb) | 48.5 kg (107 lb) |
| Metal parts | 316L (1.4404)/1.4122 | 316L (1.4404)/1.4122 |
Circulating units with higher capacity or for other fluids or viscosities on request.
* Considering the respective working point
Similar products
SPU Circulation pump
SPU1010: without explosion protection
SPU2040: with mechanical seal, with magnetic coupling as an option, ATEX conform
SPU2063: with mechanical seal, with magnetic coupling as an option, ATEX conform
SPU4040: with magnetic coupling, ATEX conform
SPU5000: sealless pump, ATEX conform
Inquire about individual solutions
We develop and produce customer-specific special and individual solutions for every application.
